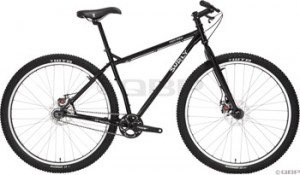

Surly Karate Monkey

Sale Price: $1008

TECHNICAL SPECS

Surly 4130 CroMoly steel. Main triangle double-butted. TIG-welded
Horizontal dropouts with a derailleur hanger, so you can run it as a singlespeed, a fixed-gear, or with full gears and derailleurs
This is the latest frame revision, with new rear disc caliper mount to make removing and installing the rear wheel easier

COMPONENTS

Truvativ FireX 1.1 crank/BB with 33t ring
Shimano 17t freewheel
SRAM PC830 chain
Ritchey Logic Comp headset
Kalloy stem and post
Salsa Moto-Ace handlebar
Avid FR5 levers hooked to Avid BB7 mechanical disc brakes
WTB Exiwolf 29 x 2.3 tires
WTB SST Saddle
Wheels are Surly sealed cartridge disc hubs, laced to Salsa Delgado rims using DT Swiss Champion 14g stainless spokes
Other nifty doodads include a stylish and functional Surly seatclamp and comfy Velo grips
Pedals are not included

GEOMETRY

Surly includes size-appropriate cranks and stems, depending on frame size:

Frame Size	Stem Length	Stem Angle	Handlebar Width	Crank Length
16	90	7	660	175
18	100	7	660	175
20	110	7	660	180
22	120	7	660	180

… and the full geometry chart:

	Small	Medium	Large	X-Large
Seat Tube Length (Center-Top)	16.0	18.0	20.0	22.0
Top Tube Length (Center-Center)	22.0	22.6	23.2	24.0
Effective Top Tube Length (Center-Center)	22.7	23.6	24.3	24.9
Head Tube Angle	71.0	71.5	72.0	72.0
Seat Tube Angle	73.0	73.0	73.0	73.0
BB Drop	2.7	2.7	2.7	2.7
Chainstay Length	17.0	17.0	17.0	17.0
Wheelbase	41.2	42.0	42.4	43.0
Standover Height	30.0	31.0	32.0	33.2
Head Tube Length	3.5	3.5	3.7	4.1
Fork Length	18.4	18.4	18.4	18.4
Fork Rake	1.7	1.7	1.7	1.7

**Standover height is based on a 29 x 2.1” tire that measured 737mm in diameter
